[ENG] Energy consumption report

Energy consumption report

Open Link

Login – Energy Management – Energy Report – Energy consumption report

Summary

Energy consumption report is a document that provides information on energy usage, production, and efficiency. The report include data on electricity.

Energy consumption report

Users can filter the following information:

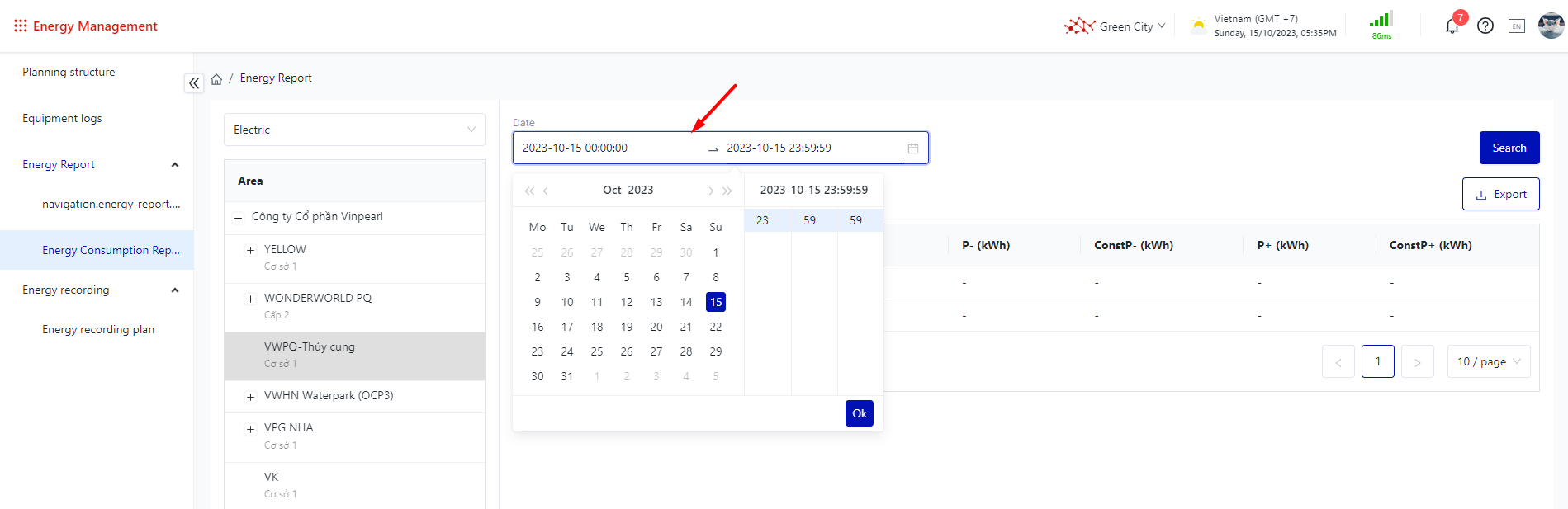

• Filter by recording time period.

• Export Excel report for energy consumption tracking.

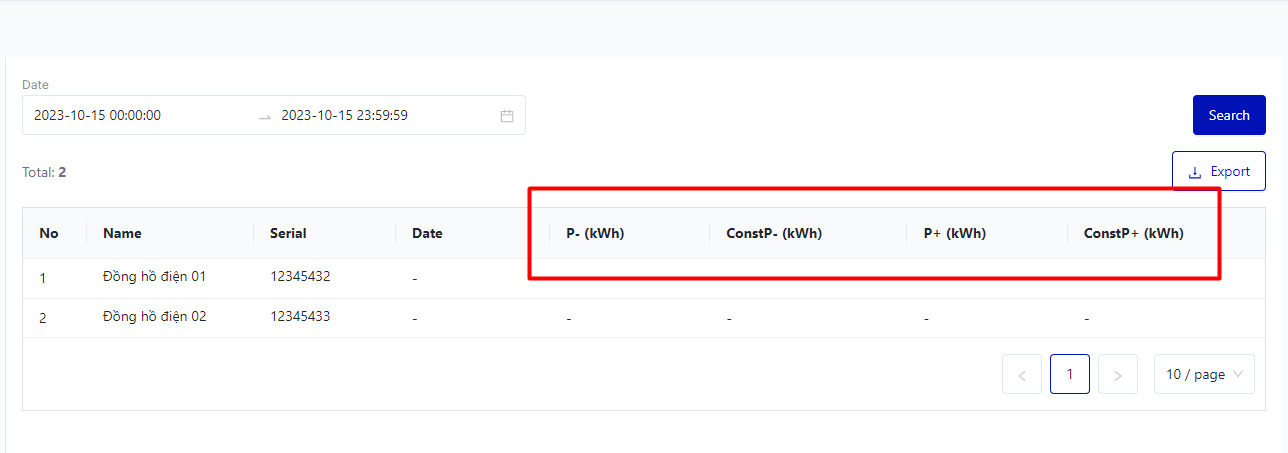

Users can view the following information for energy consumption tracking:

• Device name

• Serial

• Type- record

• Date

• P delivery for the period (kWh) - applicable for electricity consumption tracking, calculated as P delivery (end of period) - P delivery (beginning of period)

• P delivery according to the current transformer ratio (kWh) = P delivery for the period * current transformer ratio

• P reception for the period (kWh) - applicable for electricity consumption tracking, calculated as P reception (end of period) - P reception (beginning of period)

• P reception according to the current transformer ratio (kWh) = P reception for the period * current transformer ratio

• Total consumption (m³) - applicable for water consumption tracking, calculated as total consumption at the end of the period - total consumption at the beginning of the period.
