[Eng] Chains

Screen Name

Chain

Login - Admin Setting - Chain

Summary

The screen allows you to configure the list of chains in the application.

Screen


Fields Description

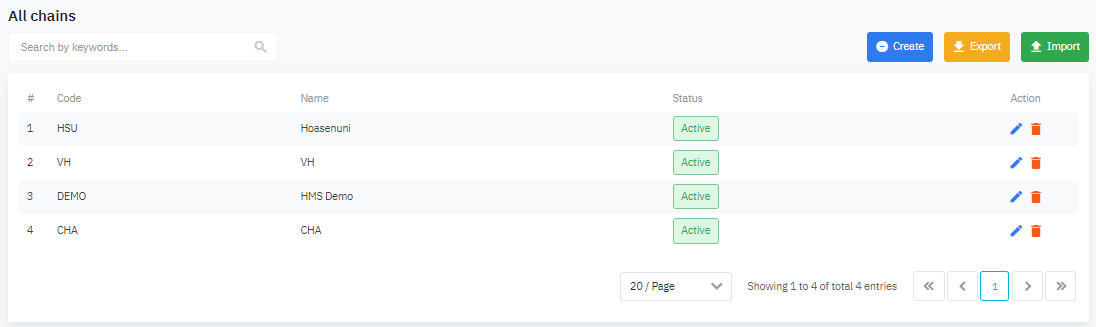

List of chains:

  • Code: Code of the chain

  • Name: Name of the chain

  • Status: Status of the chain (Active/Inactive)

  • Action:

    • Edit: Edit the details of the chain

    • Delete: Delete the chain


Add a new chain

You can manually add a new chain or import from an Excel file

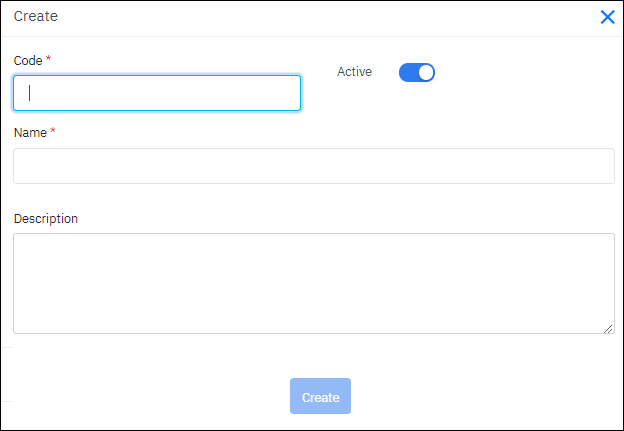

Select "Create" to add a new chain

  • Code: Code of the chain

  • Name: Name of the chain

  • Description: Description of the chain

  • Status: Status of the chain (Active/Inactive)

Import from Excel

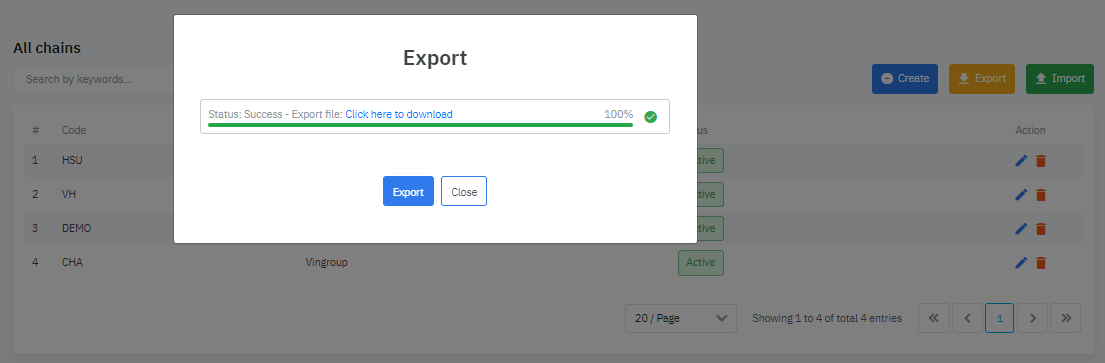

Step 1: (1) Select " Export" >> (2) Export >> (3) Download to download the template

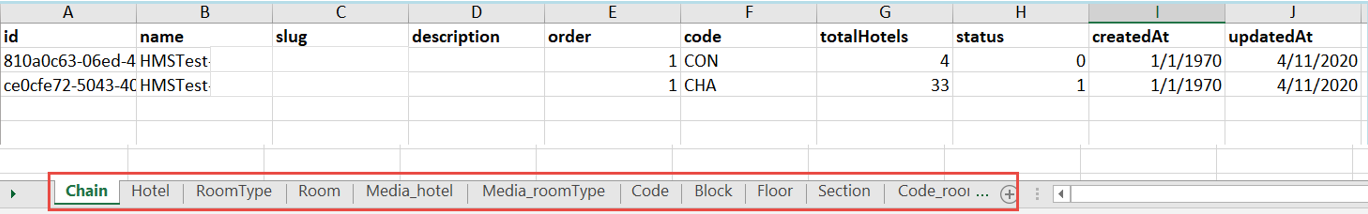

The Excel template has the following information:


Note: See how to input the excel file [Eng] Detail import file excel

Step 2 : After inputting the file, continue the following steps to import the file:

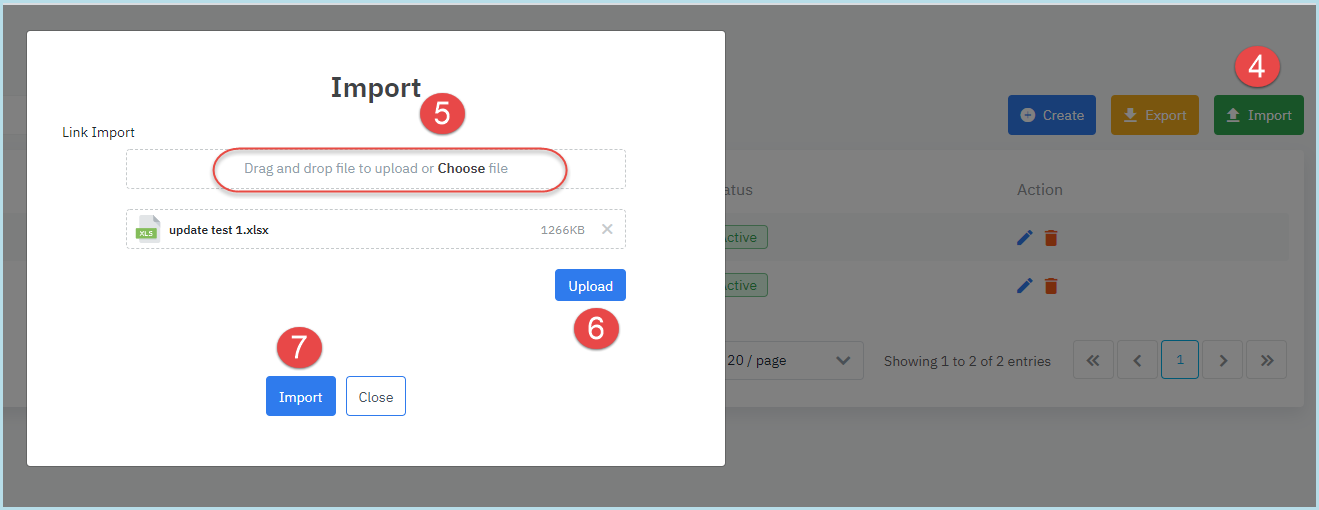

(4) Import >> (5) Choose >> (6) Upload >> (7) Import

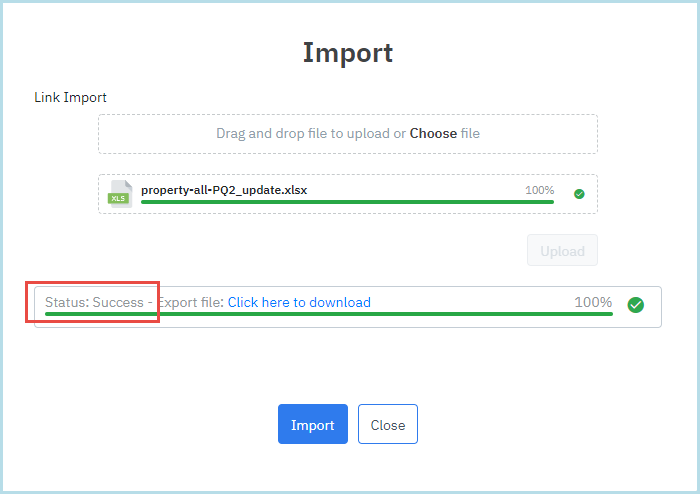

After successfully importing, the system displays the success message below:


Remarks

N/A
